Economic CNC lathe
-
SK series
-
HK series
-
TK series
-
CBK series
Introduction

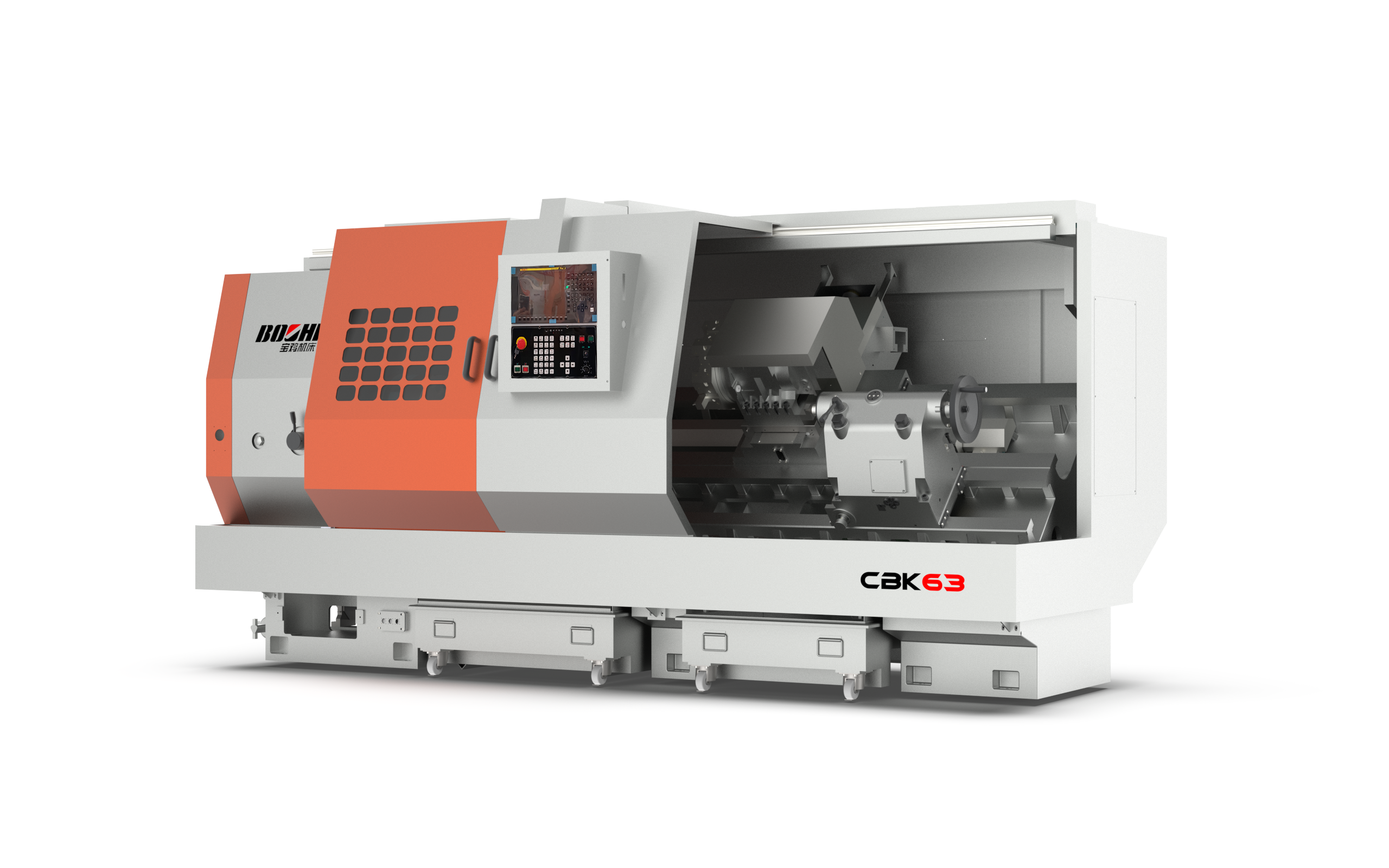

The machine has 45 ° slant bed structure.The spindle,equipped with special frequency changing motor,uses 3-gear mechanical speed change can reach stepless speedchange.With large spindle power and swing diameter,the lathe ensures high rigidity and good reliability.
Specifications
|
Item |
Unit |
Specification |
||||
|
CBK63.1000 |
CBK63.2000 |
CBK63.3000 |
||||
|
Capacity |
Max. swing over bed |
mm |
φ630 |
|||
|
Max. swing over slide |
mm |
φ445 |
||||
|
Max. turning diameter |
mm |
φ500(4-station)/ φ450 (8-station) |
||||
|
Max. turning length |
mm |
1000/800 8-station |
2000／1800 8-station |
3000/2800 8-station |
||
|
Max. bar diameter |
Ф62 |
|||||
|
Spindle |
Spindle bore |
mm |
φ84 |
|||
|
Spindle nose |
A1-11(manual chuck)/ A2-8(hydraulic chuck) |
|||||
|
Spindle speed |
r/min |
20-210 (L) 50-525 (M) 155-1600 (H) |
||||
|
Main motor |
kW |
11 kW servo motor |
||||
|
Tailstock |
Diameter of quill |
mm |
φ100 |
|||
|
Standard/live spindle center (MT No.) |
5/4 |
|||||
|
Max. travel of quill |
mm |
150 |
||||
|
Turret |
Number of stations |
4/8 |
||||
|
Width of top rest of power turret |
mm |
200×200 |
||||
|
Standard tool section |
mm |
32×32 |
||||
|
Carriage |
X/Z-axis rapid traverse |
m/min |
8/8 |
|||
|
X/Z-axis travel |
mm |
350/1000 |
350/2000 |
350/3000 |
||
|
Others |
Power source |
kVA |
30 |
|||
|
Dimension |
mm |
2720×1805×1885 |
3982×1805×1885 |
5052×1805×1885 |
||
|
Net weight |
kg |
5000 (incl. hydraulic unit) |
5500 (incl. hydraulic unit) |
7500 (incl. hydraulic unit) |
||
